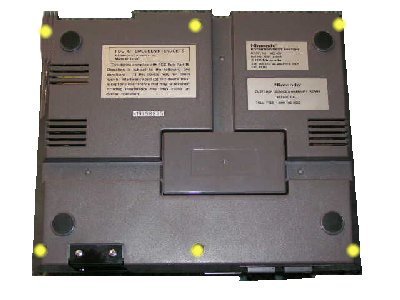

  Step 1: Take your NES console and place it in a well lighted area on a smooth flat surface. Make sure the power is disconnected!!! Turn your NES upside down and remove the 6 screws from the bottom of the console. The screw locations are marked in yellow in the image above. Then turn the console over and remove the top cover. You will now see the silver RF shield. Remove the 7 screws in the RF shield and gently remove the shield. See Pictures Above. Next Page: |
|
